Updated Performance on ATM.1st

Our performance range pressure sensors have enhanced features designed around high accuracy, long term and temperature stability. The ATM.1st is now available with elevated Shock/Vibration and EMC/RFI resistance, designed for Military, Aerospace and Test Benches. ATM.1st comes with many modular options including Low pressure from 50 mBar, Accuracy to 0.05%, Flush mount for corrosive or viscous fluids and integral MIL-C 26482 or M12 connector options. Available with Global hazardous area or mining approvals.

Check out the ATM.1st here.

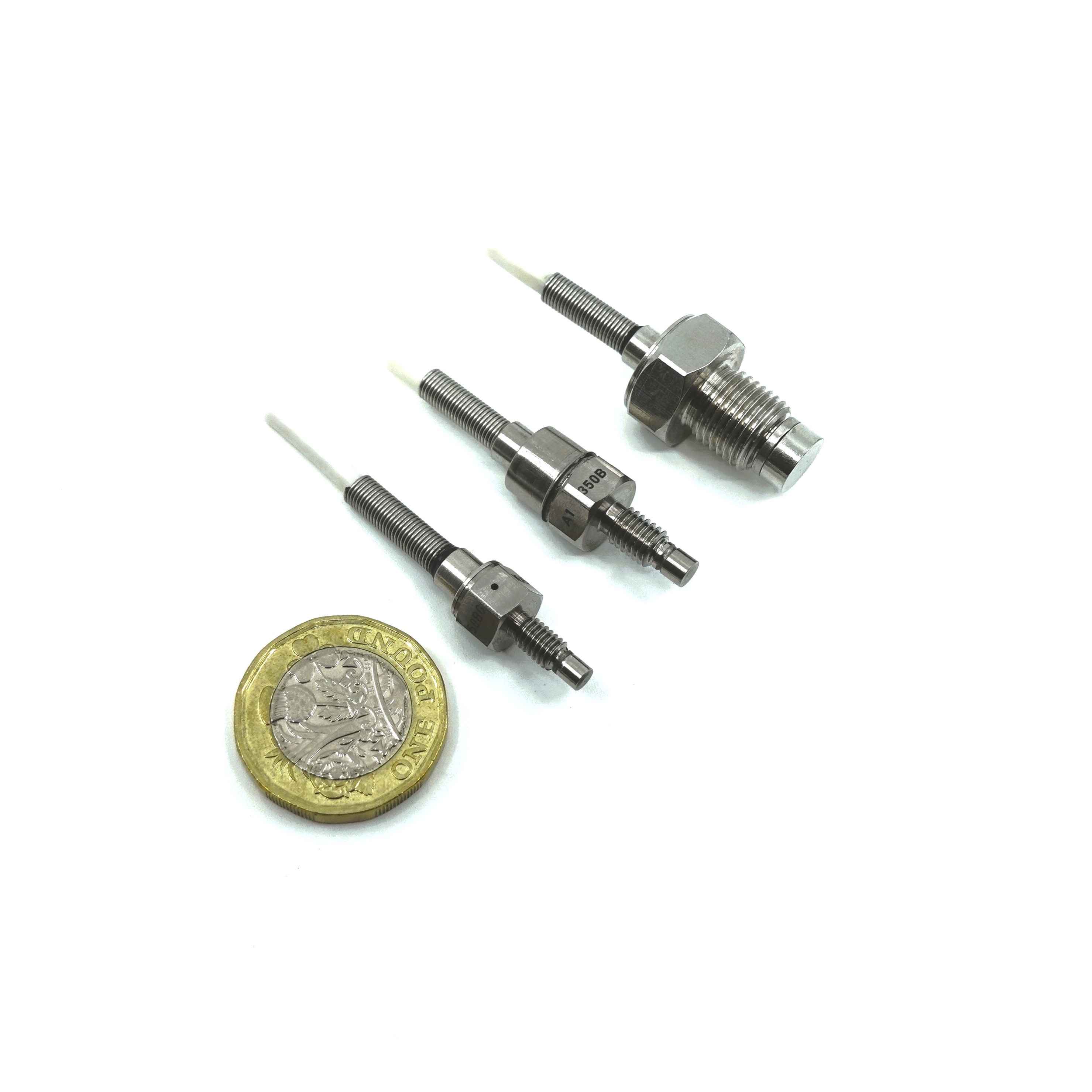

Expanded PM4, PM5, PM6 & PM10C Family

Miniature pressure sensor family for static and dynamic applications. Unlike an IEPE or charge mode dynamic pressure sensor, the PM range will actively measure static and dynamic pressures. The compact design starting at M4 threads allow it to be used in the smallest of spaces. Benefit from the enhanced range which now has Titanium material, IP option upgrade and amplified or mV output options. The PM family come as flush mount, dynamic to 120 kHz and can used for high viscosity fluids.

Browse the PM family range here.

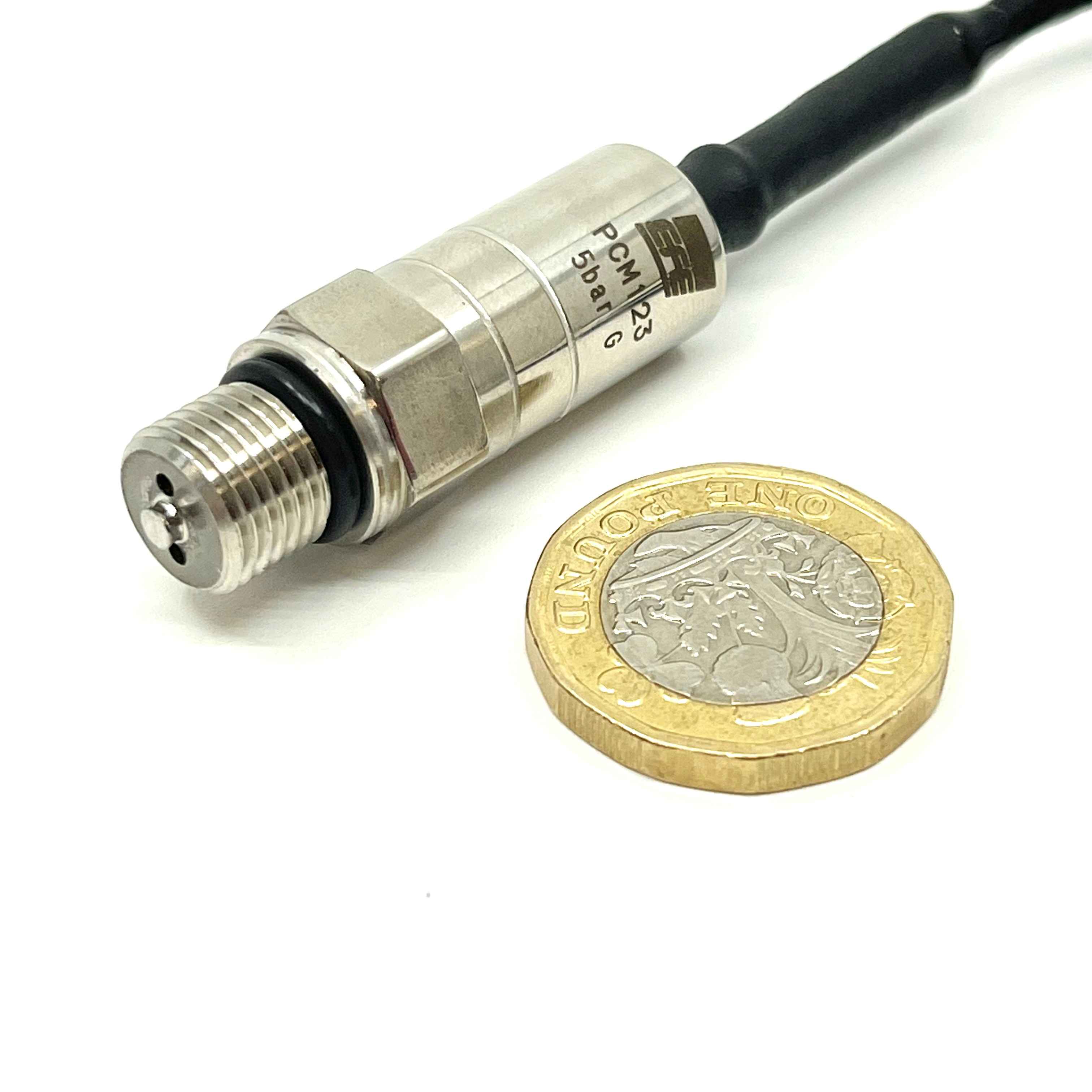

Combined Pressure & Temperature PCM120/PCM160

Most pressure sensors need temperature measurement on-board for temperature compensation, which is embedded in the body of the sensor ie it is measuring the sensor temperature not the media. This Thin Film combined pressure & temperature sensor family is designed specifically to measure the media temperature using either PT100, PT1000 or NTC/PTC and removes the need for 2 sensors with 2 potential leak paths. The PCM120 has a temperature range of -40 to 125 Deg C whereas the PCM160 is -55 to 175 Deg C.

See the PCM120 and PCM160 here.

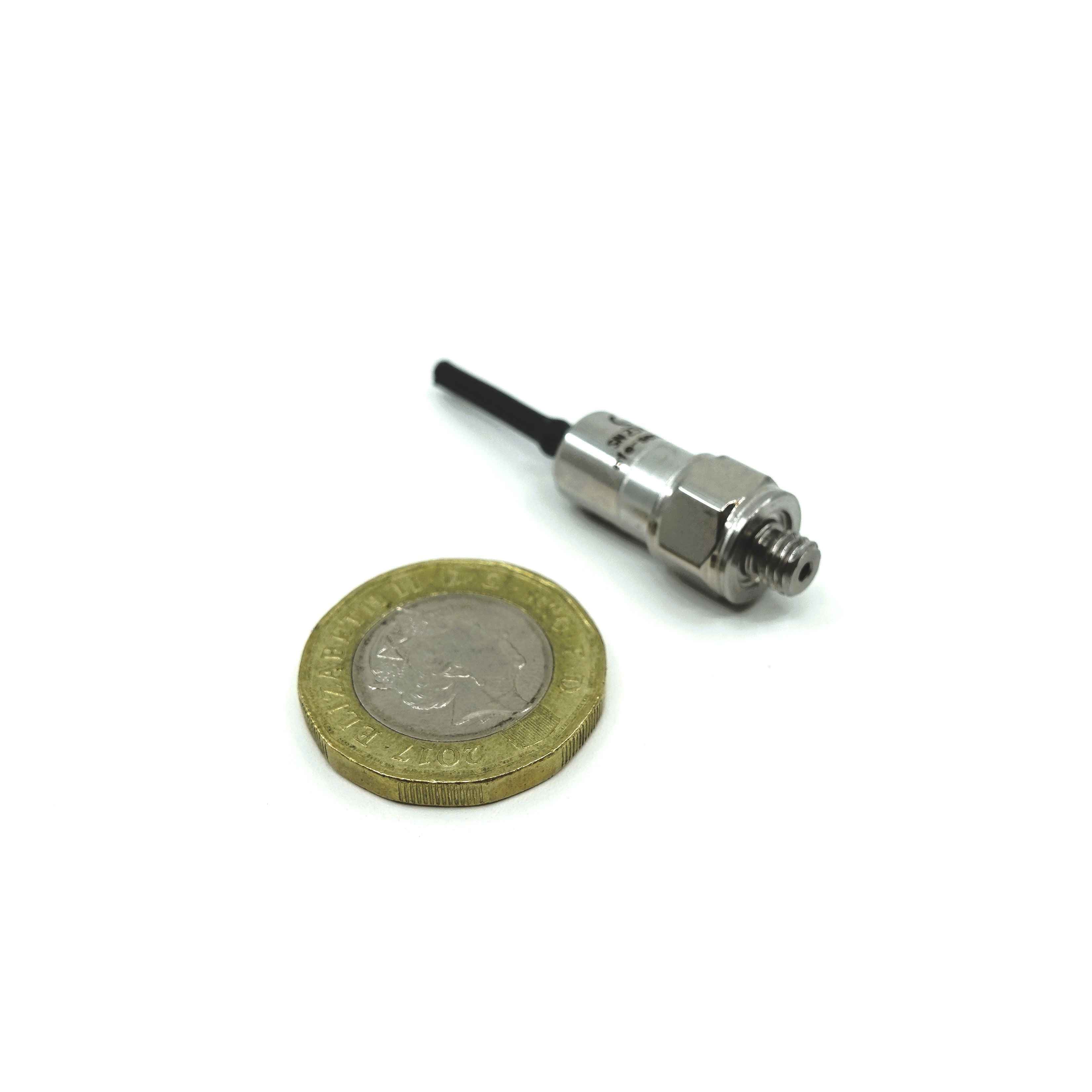

Sub-Miniature Pressure Sensor PST860/PHT860

We believe that this is the smallest Pressure Sensor at 8.6mm diameter with an amplified output (although we could be proved wrong one day). Specifically designed with a low mass at 3 grams without cable, M5 thread, 0.5-4.5VDC output and pressure ranges -1 to 250 Bar. The PHT version is capable of being used to 175 Deg C. The Thin Film sensing technology guarantees a very linear performance and excellent stability over time.

Check out the PST860 here and PHT860 here.
