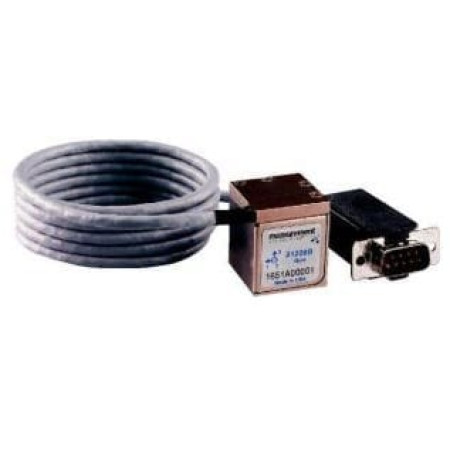

Triaxial Rate Gyro, mid range
Model 31207B Triaxial Rate Gyro is capable of sensing angular rate around three orthogonal axes. Fully temperature compensated analog outputs are available for the X, Y and Z axes. Choose the range option best suited for your application to measure ±1000°/sec or ±1200°/sec rotational rates on each of three axes. Each axial sensor has been tested over the -40 to +85 temperature range and has a nominal full scale output swing of ±2 volts. The zero rate output level is nominally +2.5 volts.
