Product Description

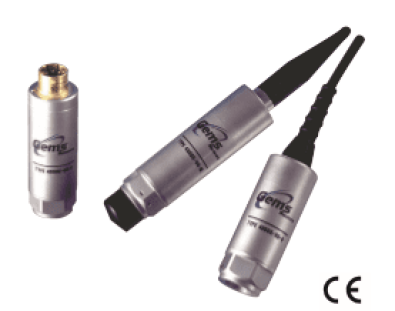

The Model 4000 series provides exceptional levels of stability and other performance specifications in a wide variety of enclosures from submersible to differential styles. By using a sputtered sensing element, which achieves a molecular fusion of a strain gauge material, an insulating material, and the 17-4 PH ss sensing element, the 4000 series provides the most stable sensor construction possible. These sputtered sensors are packaged for harsh applications requiring long term service where precise laboratory type measurements are required. Ranges 0-1 to 0-690 bar gauge or absolute, supply 10 VDC with a mV output (30 mV typical), fully configurable from the data sheet including a differential pressure option.
