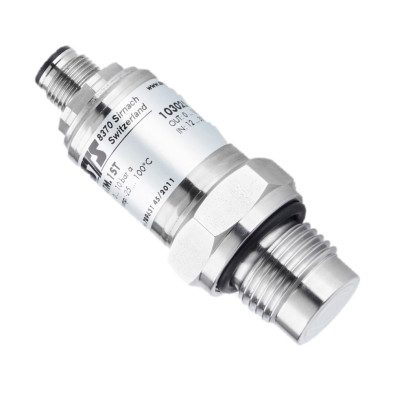

Pressure sensor, high accuracy
The model ATM.1ST is a pressure sensor for high accuracy applications. The sensor has many options available including, material options of stainless steel, Titanium or Hastelloy C-276, digitally temperature compensated accuracy to 0.05% FS (full scale), a choice of oil fills and sealing o'rings to either suit drinking water or high corrosion requirements. Temperature as standard is 125 Deg C however can be increased to 150 Deg C by use of a temperature cooling fin. Output is 4-20mA 2 wire current loop, or voltage. Process connection options include flush diaphragm on a 1/4" or 1/2" G or NPT thread. Pressure ranges start from 0-50 mbar to 0-600 bar gauge, absolute or sealed gauge reference.
Our experts can help you select the right product for your application.
