High Accuracy & Performance Pressure Sensors

The basic question is what is high accuracy nowadays? 10 years ago, 0.1% of full scale would be considered very high accuracy, nowadays most of our products now have standard 0.1% accuracy options. We consider 0.05% full scale or better to be high accuracy on a finished pressure or pressure/temperature transmitter. Most sensors and sensing elements can be provided with enhanced performance improvements, either by mechanically ageing components by high grade thermal cycles, or even polynomial curve fit algorithms in the case of gas correctors.

Please wait, loading results...

High Accuracy & Performance Pressure Sensors

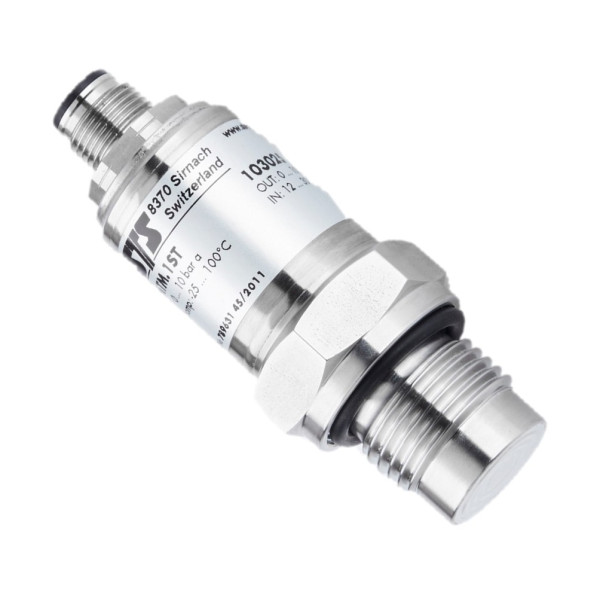

ATM_1ST-1

ATM.1ST high accuracy

Pressure sensor, high accuracy

Ranges 0-50 mbar to 0-600 bar g, abs, sg
Output 4-20mA or voltage
Accuracy 0.05% to 0.25% FS
Suitable for food and beverage

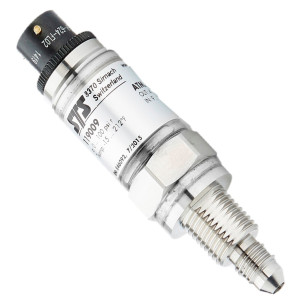

ATM.1ST_EX

ATM.1ST/Ex high accuracy

High accuracy, ATEX IECEx approved

Ranges 0-50 mbar to 0-690 bar g, abs, sg
Output 4-20 mA
Accuracy 0.05% to 0.25% FS
Mining, ATEX approved

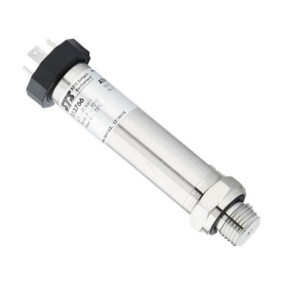

PTM Programmable

PTM programmable pressure transducer

Pressure transmitter, programmable

Ranges 0-100 mbar to 0-600 bar g, abs, sg
Output 4-20 mA
Accuracy 0.1% to 0.2% FS
Software adjustable

PTA220

PTA220 high accuracy

Pressure for high accuracy

Ranges 100mB to 600 bar gauge, abs
Outputs mV, 0.5 to 4.5VDC, 0-5VDC, mA
Accuracy 0.1% FS, option 0,05%
Modular construction, many options

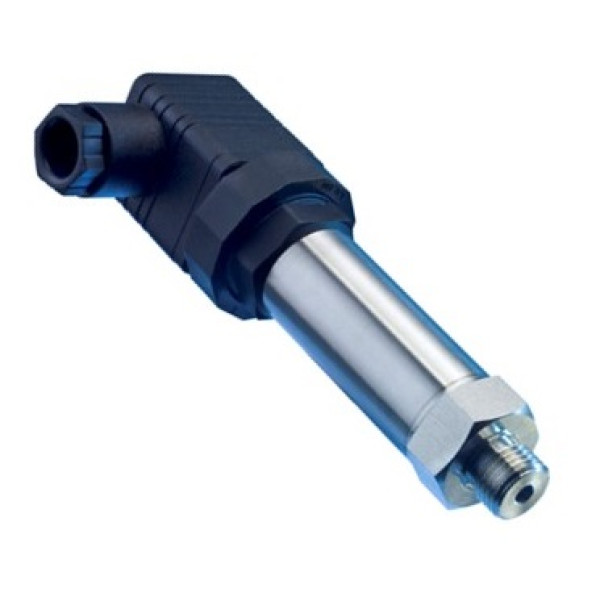

PST221

PST220 universal

Universal Pressure sensor

Ranges 0-50mb to 0-600 bar gauge, abs
Outputs mV, 0.5 to 4.5VDC, 0-5VDC, mA
Accuracy 0.25% FS
Modular construction, many options
