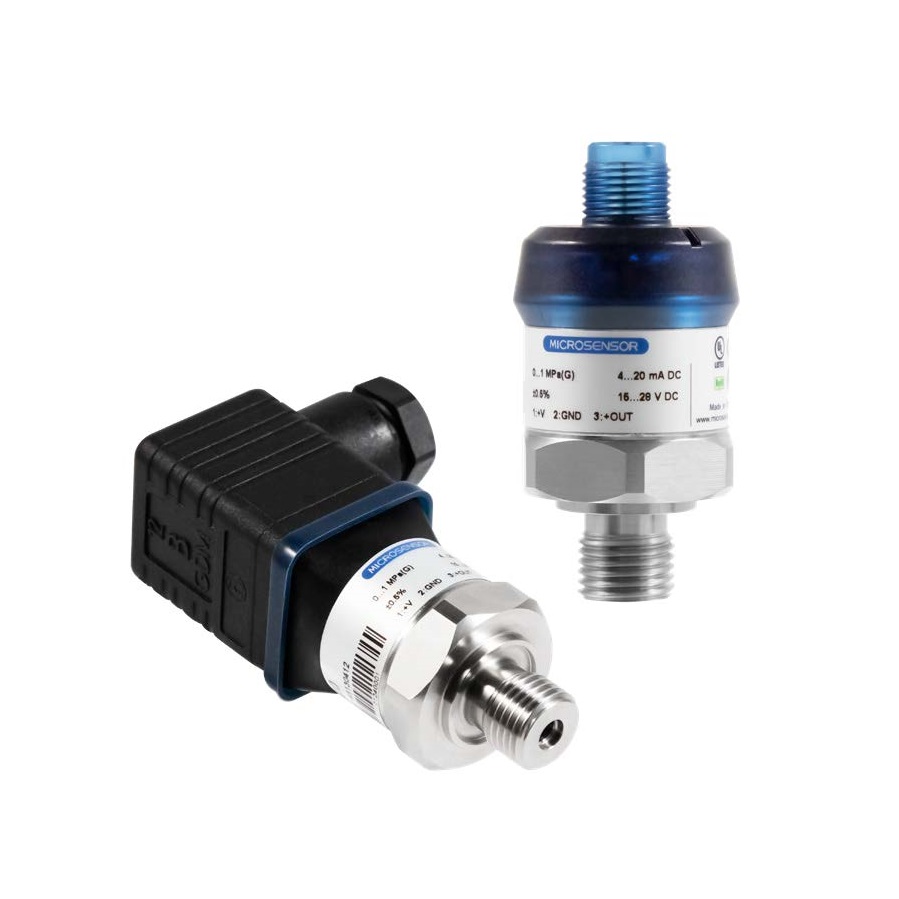

M20FL Pressure Transmitter for Oxygen Measurements

M20FL Pressure Transmitter for Oxygen Measurements

Pressure transmitter, oxygen measurements

  • Range 0-25kPa to 0-25MPa g, abs, positive/negative
  • Output 4-20mA or voltage
  • Accuracy ±0.25% FS
  • Very small compact size

Categories: Sensors Pressure Sensors Industrial Cost-Effective Pressure Solutions

Product Description

M20FL pressure transmitter is dedicated to oxygen pressure measurements. Fluid filled with Fluorinated® oil, with full digital temperature compensation and calibration. Excellent RFI/EMC protection and reliability while being highly cost-effective. The sensor is degreased and cleaned for Oxygen-use following ISO15001 / ASMT G93 standards and procedures. It is widely used in the medical and pharmaceutical industries, specializing in solving measurement problems such as gas pressure in medical oxygen generating equipment and oxygen storage tanks.

Applications

  • Pharmaceutical industry
  • Medical
  • Aerospace industry
  • Chemical industry
  • Metallurgy

Technical Resources

M20FL-Pressure_Transmitter_Oxygen.pdf
Datasheets
