Board mounted, mV output
This product is obsolete effective 2022. See Board mount sensors for replacement products.

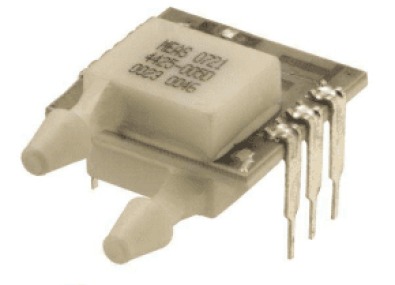

The model MS4425 is a temperature compensated, piezoresistive silicon pressure sensor packaged in a dual-in- line configuration and intended for cost sensitive applications where excellent performance and long-term stability are required. Integral temperature compensation is provided over a range of 0-50°C using laser-trimmed resistors. The pressure sensor is available in absolute, gauge or differential pressure ranges from 0-1 to 0-300 psi. The pressure ports are 1/8” barbed ports which mate with 3/32” ID tubing. These tubes are parallel to the printed circuit board to allow other boards to be located above the sensor. For a vertical mounted tube in gauge or absolute pressure, refer to the MS4426.
