Product Description

This product is obsolete effective 2022. See Board mount sensors for replacement products.

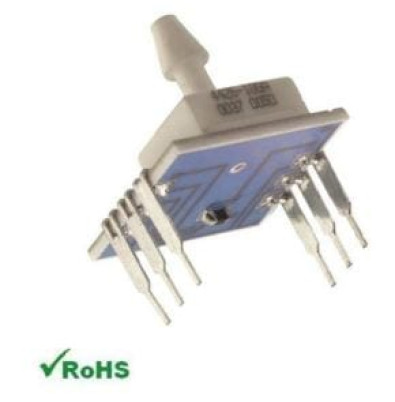

The model MS4426 is a temperature compensated, piezoresistive silicon pressure sensor packaged in a dual-in- line configuration and intended for cost sensitive applications where excellent performance and long-term stability are required. Integral temperature compensation is provided over a range of 0-50°C using laser-trimmed resistors. The pressure sensor is available in absolute or gauge pressure ranges from 0-1 to 0-300 psi. The pressure ports are 1/8" barbed ports which mate with 3/32" ID tubing. The tube is vertically mounted to the printed circuit board. For a horizontally mounted tube in differential, gauge and absolute pressure, refer to the MS4425.
