Digital Output & Programmable

There are several digital output options available, the most common being Modbus RS-485 or CAN. RS-485 is available to connect to your existing network and all the commands are standard allowing an easy set up including zero/span adjustments. CAN output sensors can be modified should you require additional address codes, or have a unique requirement. Some pressure sensors can be provided with bespoke software which allows easy set up, span/zero adjustment with additional features such as combined pressure and temperature outputs. We are very interested to hear from you about new requirements you have, especially when new market protocols are required such as EtherCAT, PTP.

Please wait, loading results...

Digital Output & Programmable

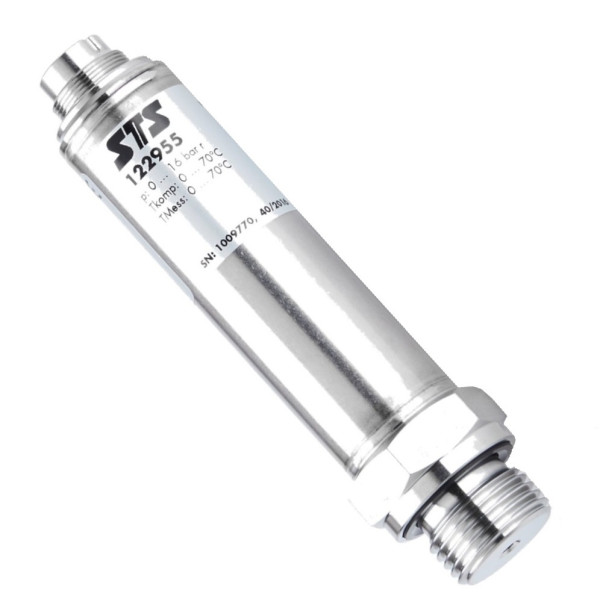

Industrial_Pressure_DTM_OCS_S-1

DTM.OCS.S RS485

Digital Modbus, RS485

Ranges 0-200 mbar to 100 bar g, abs, sg
Output RS485 interface
Accuracy 0.03% to 0.15% FS
Custom options

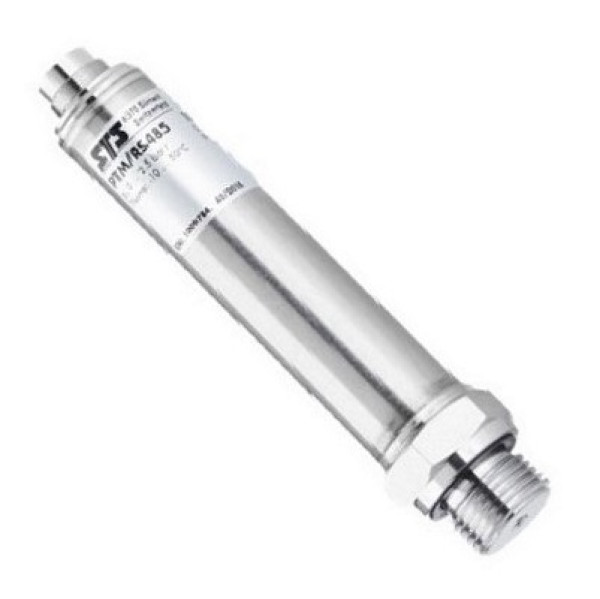

PTM_RS485-3

PTM/RS485 programmable

Combined P&T Transmitter, programmable

Ranges 0-100 mbar to 0-600 bar g, abs, sg
Output RS485 & 4-20mA
Accuracy 0.1% to 0.25% FS
Combined pressure & temp output

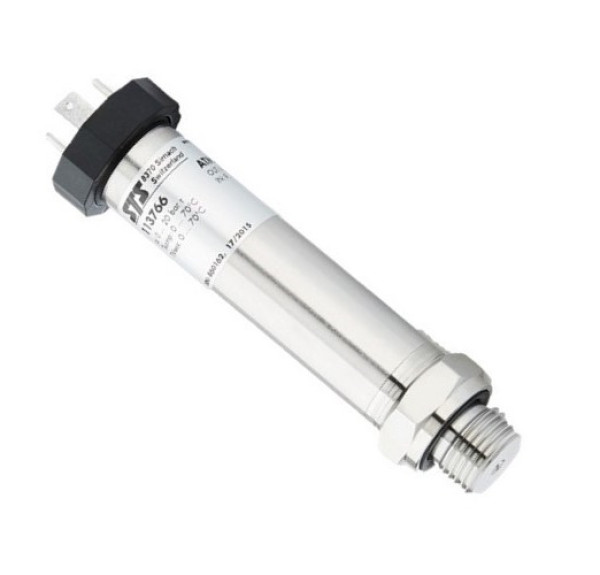

PTM Programmable

PTM programmable pressure transducer

Pressure transmitter, programmable

Ranges 0-100 mbar to 0-600 bar g, abs, sg
Output 4-20 mA
Accuracy 0.1% to 0.2% FS
Software adjustable

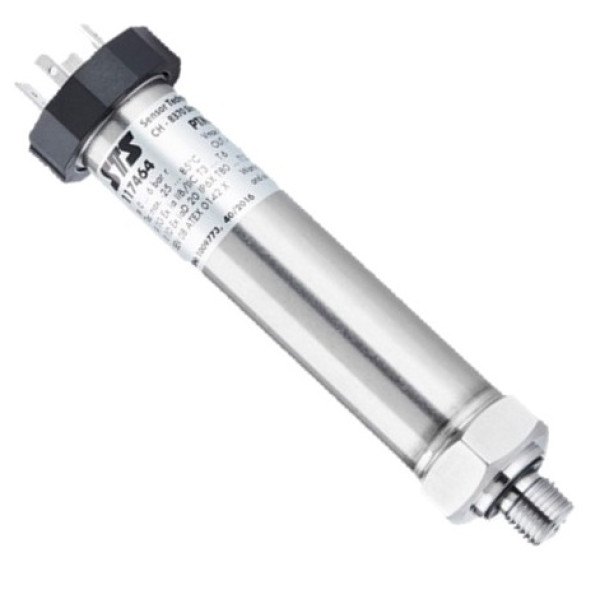

PTM_EX

PTM.Ex programmable

ATEX programmable pressure transmitter

Ranges 0-100 mbar to 0-600 bar g, abs, sg
Output 4-20 mA
Accuracy 0.1% to 0.2% fs
Software provided

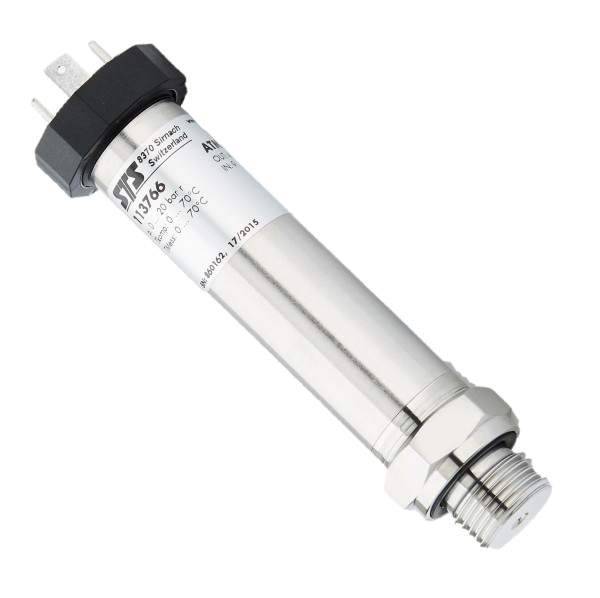

ATM.1ST_T-1

ATM.Ex field adjustable

ATEX zero/span adjustable

Ranges 0-100 mbar to 600 bar g, abs, sg
Output 4-20mA
Accuracy 0.25% to % FS
Mining and marine approved

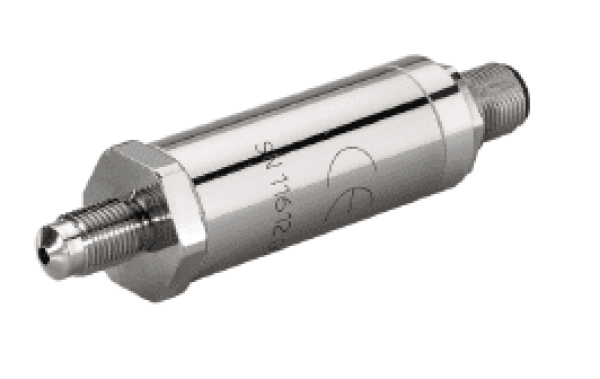

PDS22C CANopen

Pressure sensor with CANopen output

Ranges 0-100mbar to 0-600 bar gauge, abs
Output CANopen (via CANbus)
Accuracy 0.1% FS
16 bit / 20ms
